I/O Option Cards

Separate input and output cards allow you to customize your Horus or Hapi interface to exactly what you need for each application. Choose from Standard (up to 192kHz capable) or Premium (up to DXD/DSD capable) inputs and/or outputs to make sure you capture and/or play back every sound with the greatest accuracy. Whichever you choose, be secure in knowing that you are using some of the best AD and DA circuitry in the world.

Analog > Digital

AKDG8D/AKDG8DP

We have started to ship the new AKDG8D and AKDG8DP AD input cards. These remotely controlled Mic/Line input cards are 3rd generation Dual Gain topology designs, taking inspiration from the outstanding Anubis Preamps, showing zero tolerance to any compromise on the audio quality.
These cards are a new benchmark in analog circuit design, and provide additionally a Line level post Mic-pre “Direct Out” output.
Available in models that work up to 192kHz (AKDG8D, Standard) and DXD/DSD256 (AKDG8DP, Premium).

Features:

  • 8 x exceptionally transparent, Swiss designed pre-amplifiers
  • Remote/Local switch to Line Level on a per channel basis
  • Completely accessible remotely for all parameter changes
  • Phantom Power/Polarity Invert/Low Cut/Impedance switchable per channel
  • Removes the need for DI boxes
  • Allows build-in Mic splitting variants
  • Dynamic range of 136dB (A-weighted, typ)
  • Auto-mute circuitry for “no-pop” power cycling

Check out the Specifications of the AKDG8D and AKDG8DP here

AKD8D/AKD8DP
(Legacy product, see AKDG8D/AKDG8DP above for latest versions)

These remotely controlled Mic/Line Input cards have set a new benchmark in analog circuitry design, and provide additionally a line level post mic-pre “Direct Out” output.
Available in models that work up to 192kHz (AKD8D) and DXD/DSD256 (AKD8DP).

Features:

  • 8 x exceptionally transparent, Swiss designed pre-amplifiers
  • Remote/Local switch to Line Level on a per channel basis
  • Completely accessible remotely for all parameter changes
  • Phantom Power/Phase/Low Cut switchable per channel
  • Removes the need for DI boxes
  • Allows build-in Mic splitting variants
  • Better than 120dB dynamic range

Check out the Specifications of the AKD8D and AKD8DP here

AD8D/AD8DP
(Legacy product, see AKD8D/AKD8DP above for latest versions)

These remotely controlled Mic/Line Input cards have set a new benchmark in analog circuitry design. Available in models that work up to 192kHz (AD8D) and DXD/DSD256 (AD8DP)

Features:

  • 8 x exceptionally transparent, Swiss designed pre-amplifiers
  • Discrete, Analogue-only Direct Outputs for each Mic-Preamplifer
  • Remote/Local switch to Line Level on a per channel basis
  • Completely remote accessible for all parameter changes
  • Phantom Power/Phase/Low Cut switchable per channel
  • Better than 120dB dynamic range

Check out the Specifications of the AD8D and AD8DP here

Analog > Digital > Analog

ADA8S/ADA8P

These remotely controlled Mic/Line Input and Output cards are 3rd generation Dual Gain topology designs, inspired from the Anubis outstanding Preamps, that show zero tolerance to any compromise on the audio quality.
Available in models that work up to 192kHz (ADA8S) and DXD/DSD256 (ADA8P). Using those combined 8 channel Mic/Line In and Line Out cards allow the Hapi to be configured with up to 16 channels of Analog In/Out.

Features:

  • 8 x exceptionally transparent, Swiss designed pre-amplifiers
  • Remote/Local switch to Line Level on a per channel basis
  • Completely accessible remotely for all parameter changes
  • Phantom Power/Polarity Invert/Low Cut*/Impedance switchable per channel
  • Dynamic range of 139dB (A-weighted, typ) on the Line inputs
  • Auto-mute circuitry for “no-pop” power cycling
  • Digitally controlled output trims for line up procedures
  • Dynamic range of 125dB (ADA8S), 126dB (ADA8P) (A-weighted, typ.) on the Line outputs

         * ADA8P run 5 and above do not offer Low Cut filter

Check out the Specifications of the ADA8S/ADA8P here

ADA8
(Legacy product, see ADA8S/ADA8P above for latest versions)

These remotely controlled Mic/Line Input and Output cards have broken a new barrier in terms of compactness as well as ultra-low power consumption without compromising on the audio quality. These cards work at sampling rates up to 192 kHz.
Using those combined 8 channel Mic/Line In and Line Out cards allow a Horus to be configured with up to 48 channels of Analog In/Out and a Hapi to be configured with up to 16 channels of Analog In/Out.

Features:

  • 8 x exceptionally transparent, Swiss designed pre-amplifiers
  • Remote/Local switch to Line Level on a per channel basis
  • Completely accessible remotely for all parameter changes
  • Phantom Power/Phase/Low Cut/Impedance switchable per channel
  • Dynamic range of 120dB (A-weighted, typ) on the Line inputs
  • Auto-mute circuitry for “no-pop” power cycling
  • Digitally controlled output trims for line up procedures
  • Dynamic range of 123dB (A-weighted, typ.) on the Line outputs

Check out the Specifications of the ADA8 here

Digital > Analog

DA8/DA8P

The DA8 (up to 192kz) and the DA8P (up to DSD) have consistently shown in testing to be the quietest multichannel D/A conversion modules available anywhere.

The original design of our 8-channel DA converter board has been a great tool in setting a standard for critical listening and monitoring for all our users, and its design hasn't seen the need for major changes for the past 7 years.
We felt that now was the time to replace the DA converter chip from ESS with their latest offering, which means the new production Run 11 is now incorporating the ES9028PRO instead of the former ES9008.

This latest change allows our users to benefit from even more impressive specs with typical Dynamic Range of 125 dB (> 127 dB A-weighted) and THD+N in excess of - 116 dB (this latest number being actually close to the measurement limit of our Audio Precision equipment maxing at 118 dB THD+N).

While the above improvements of 1.5 to 2 dBs over the first generation won't hurt, the design has also incorporated new refinements by adding local Low Phase Noise Oscillator circuitry to further improve the absolute transparency and stereo image of an Analog signal, essentially void of both jitter and wander.

Features:

  • Auto-mute circuitry for “no-pop” power cycling
  • Digitally controlled trims for line up procedures
  • Dynamic range of 127dB (typ.)
  • Low Phase Noise Oscillator circuitry

Check out the Specifications of the DA8 and DA8P here

Digital Inputs & Outputs

MADM/MADS

The MADI Expansion card (MADM - Multimode / MADS - Singlemode) doubles the total MADI channel count to 128 inputs and 128 outputs @1FS for a Horus, or can add a MADI connection to a Hapi.

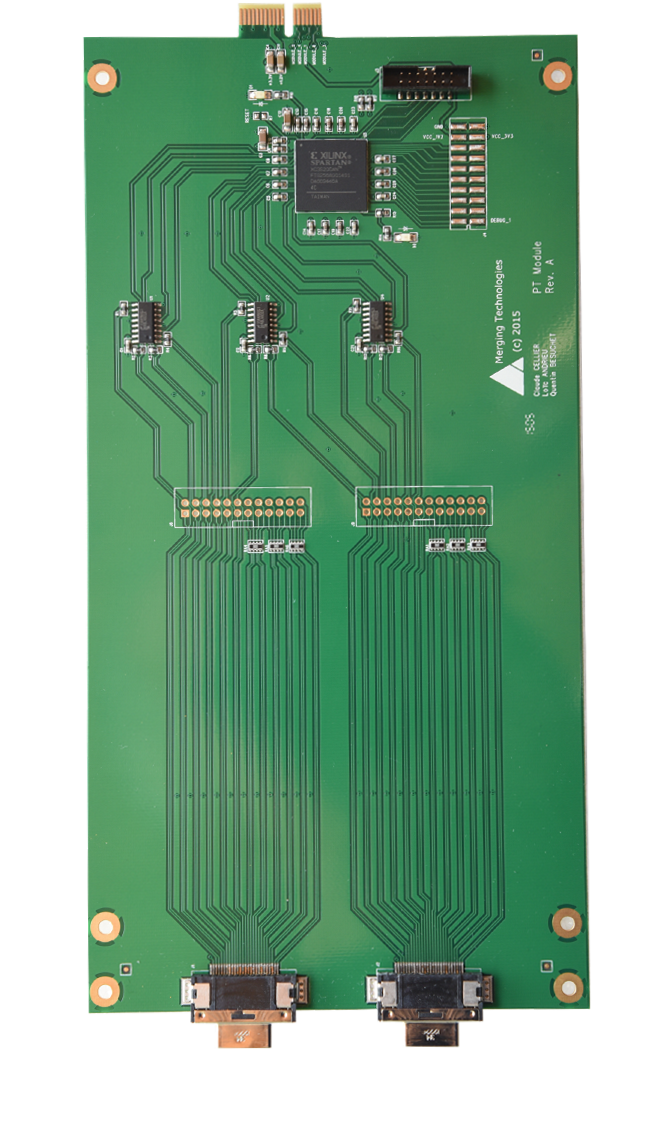

PT64 card for Pro Tools HD™ Connectivity

Now Pro Tools HD users can enjoy all the flexibility of RAVENNA networking along with Merging Technologies’ stunning Mic Pre-amps and AD / DA conversion. Able to slot into any professional AVID environment, Horus, Hapi and now Anubis are creating a new benchmark for Pro Tools HD™ users who expect the best possible signal path in their work.

Features:

  • 64 Channels of Pro Tools HD™ connectivity in each card (Main + Expansion connections)
  • Fit up to 2 PT64 cards in Hapi or Horus for 128 channels to and from Pro Tools HD™
  • Able to mimic signal delays for all AVID™ branded interfaces (HD I/O, MADI I/O, 192 I/O)
  • Works from 44.1 -> 192 kHz sample rates (up to 64 channels @48kHz per card, 32 channels @ 96kHz per card, 16 channels @192kHz per card)
  • Automatic Delay Compensation
  • Two Digilink mini connectors
  • Completely routable as any other part of our Networked Audio Interface range.
  • Connect your Pro Tools HD™ to the power of RAVENNA Networking

For more information about using our Horus & Hapi networked converters with Pro Tools check our Networked Audio Range for Pro Tools page.

Watch a video review of Horus & Hapi done by James Ivey from Pro Tools Expert (www.pro-tools-expert.com) and our UK distributor Paul Mortimer from Emerging UK (www.emerginguk.com). Discussing Horus & Hapi they come to the following conclusions:

"From the moment we connect the Hapi to the HDX Card (using the HDX Option card) the results were amazing."

"Just hearing a few tracks(...) It's stunning. I mean it's shockingly... different... I mean mindblowingly shockingly different!"

James Ivey, www.pro-tools-expert.com
