Merging AES67 RAVENNA Linux driver for ADI ADSP-SC573

Merging Technologies, and Analog Devices, Inc. (ADI) are partnering for an embedded solution for ADI’s ADSP-SC57x SHARC audio digital signal processors (DSPs). As an asset of this new partnership, a much broader audience will be able to access this state-of-the-art AES67 technology and enable OEMs to design for AES67 using the ADI ADSP-SC573.

This solution will give a lot of key features for manufacturers of electronics who want to go the AES67 route.

If you are interested and want more infomation, just contact us with your demand.


Features

  • Merging Technologies’ experience in the AoIP field (RAVENNA/AES67)
  • The ADSP-SC573 is a high-performance, power-efficient, real-time platform that delivers greater than 6 giga-floating-point operations per second using two enhanced SHARC+ cores and advanced DSP accelerators.
  • Up to 8 channels of audio (8 in + 8 out) at 44.1/48kHz and 4 channels of audio (4 in + 4 out) at 88.2/96 kHz.
  • Perfect for FIR
  • ARM processor and especially from 2 Sharc DSPs to carry out digital audio processing.
  • Cost efficient licensing. Only pay for the channels needed, no additional licensing fees.
  • The perfect solution for loudspeakers of any type or smaller Audio interfaces.

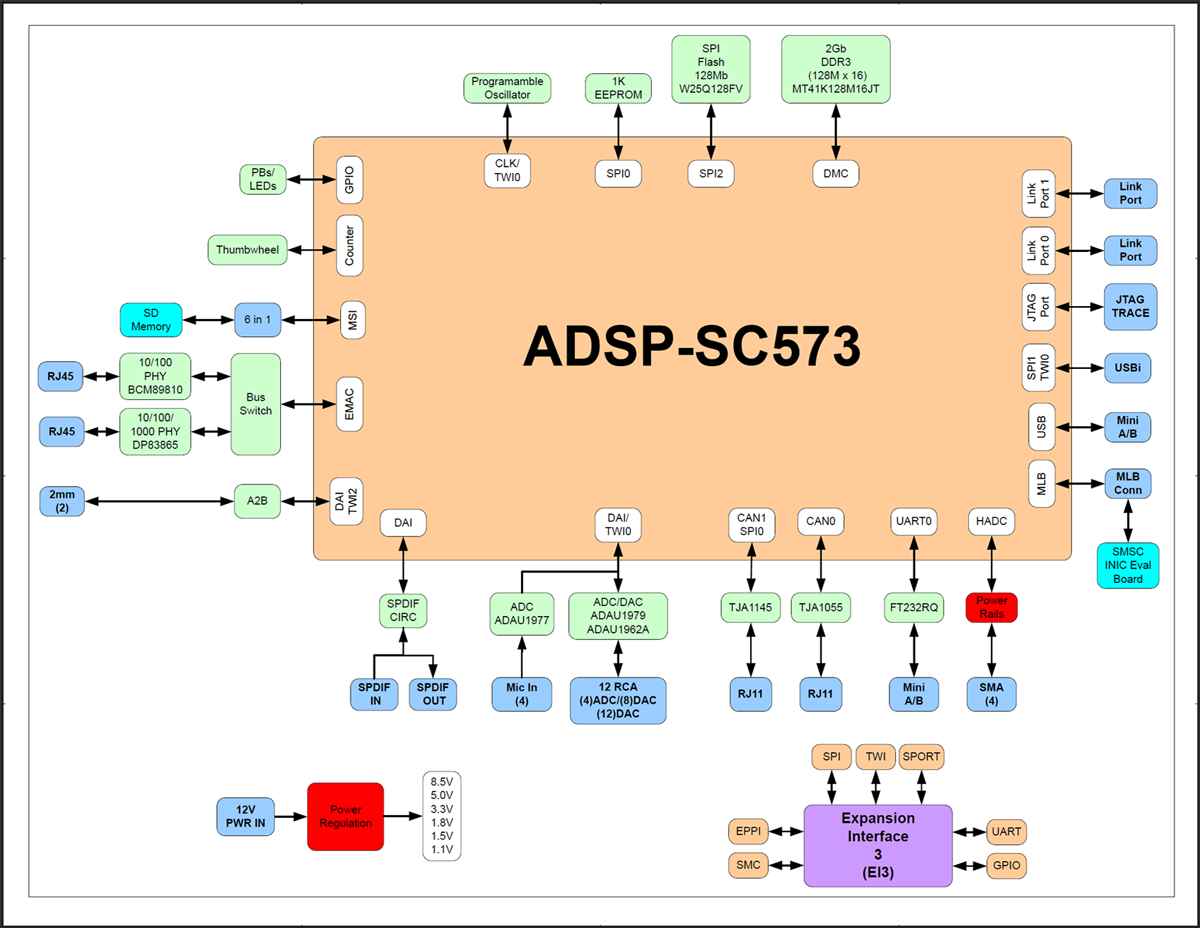

ADSP-SC573 Overview

ADSP-SC573 Overview

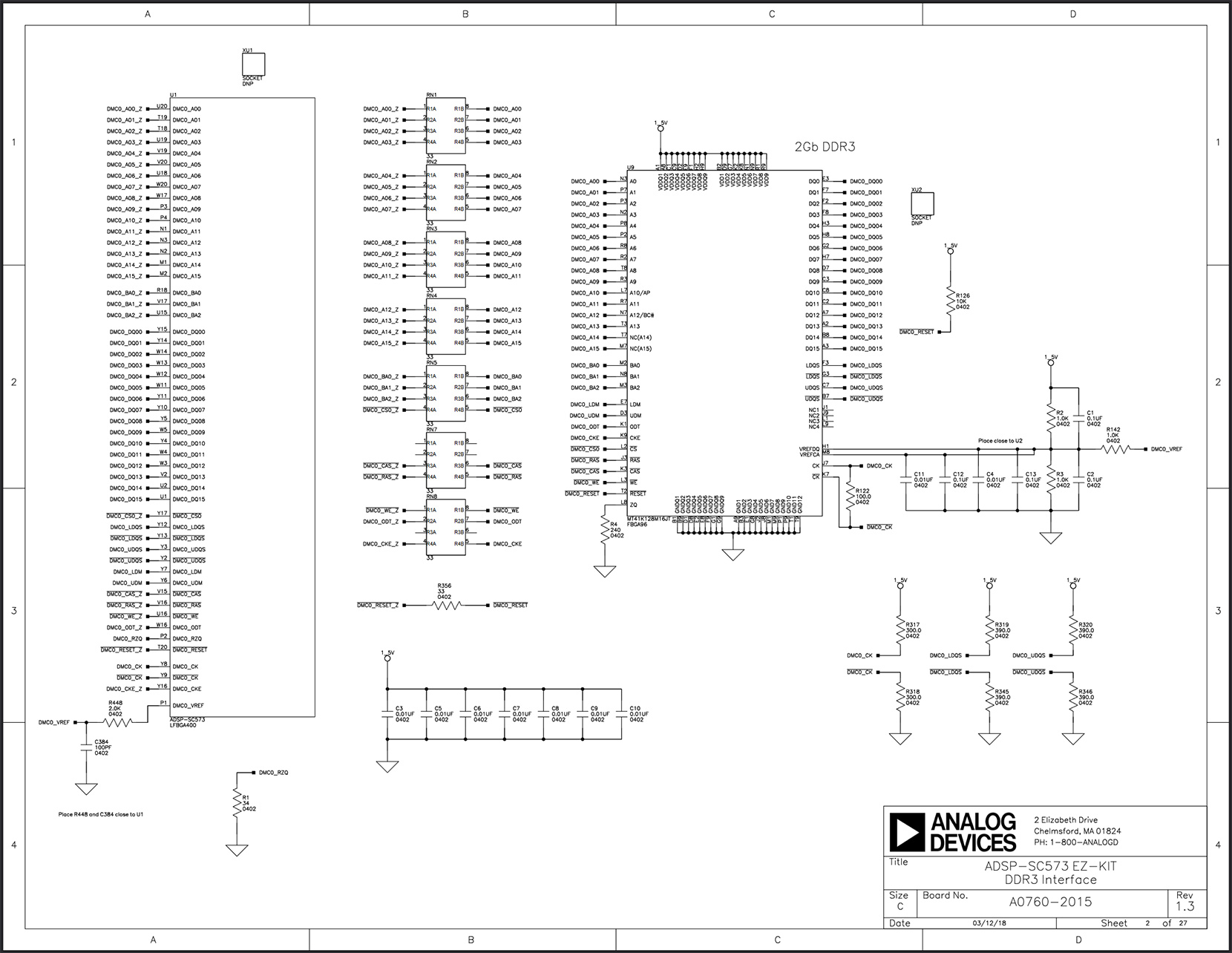

ADSP-SC573-EZ-KIT

ADSP-SC573-EZ-KIT (pdf file)


Licensing

The Merging licensed based agreement is per channels based at 44.1/48kHz with chip options of 2, 4, 6, 8 or 16 channels initially.

  • Quarterly license payments based on units sold
  • No additional cost (optional license for using the RAVENNA logo and membership)

For any additional information and requests, just contact us with your demand.

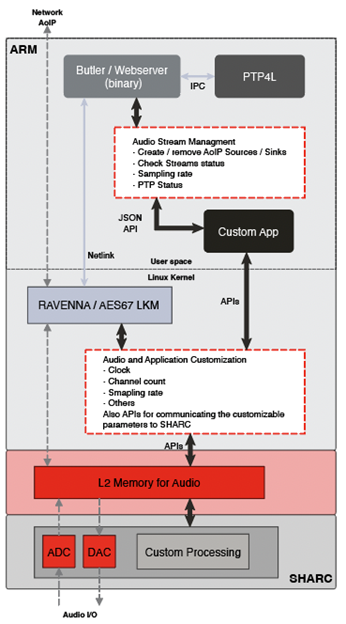

Technical specifications


  1. A Linux kernel module: RAV/AES67 LKM
    • Formatting Rx/Tx RTP audio streams
    • Audio sharing with the SHARC through a L2 SRAM
    • PTP Hardware unit interrupt handling and configuration
  2. An executable: Butler
    • High level RAVENNA/AES67 protocol implementation
    • mDNS / SAP discovery
    • NMOS IS-04/05 discovery/registration/management
    • End user configuration via a web server CometD / HTTP REST API frontend
  3. A PTP service: ptp4l
    • PTP boundary clock and ordinary clock
    • Synchronize the PTP hardware clock to the master/system clock

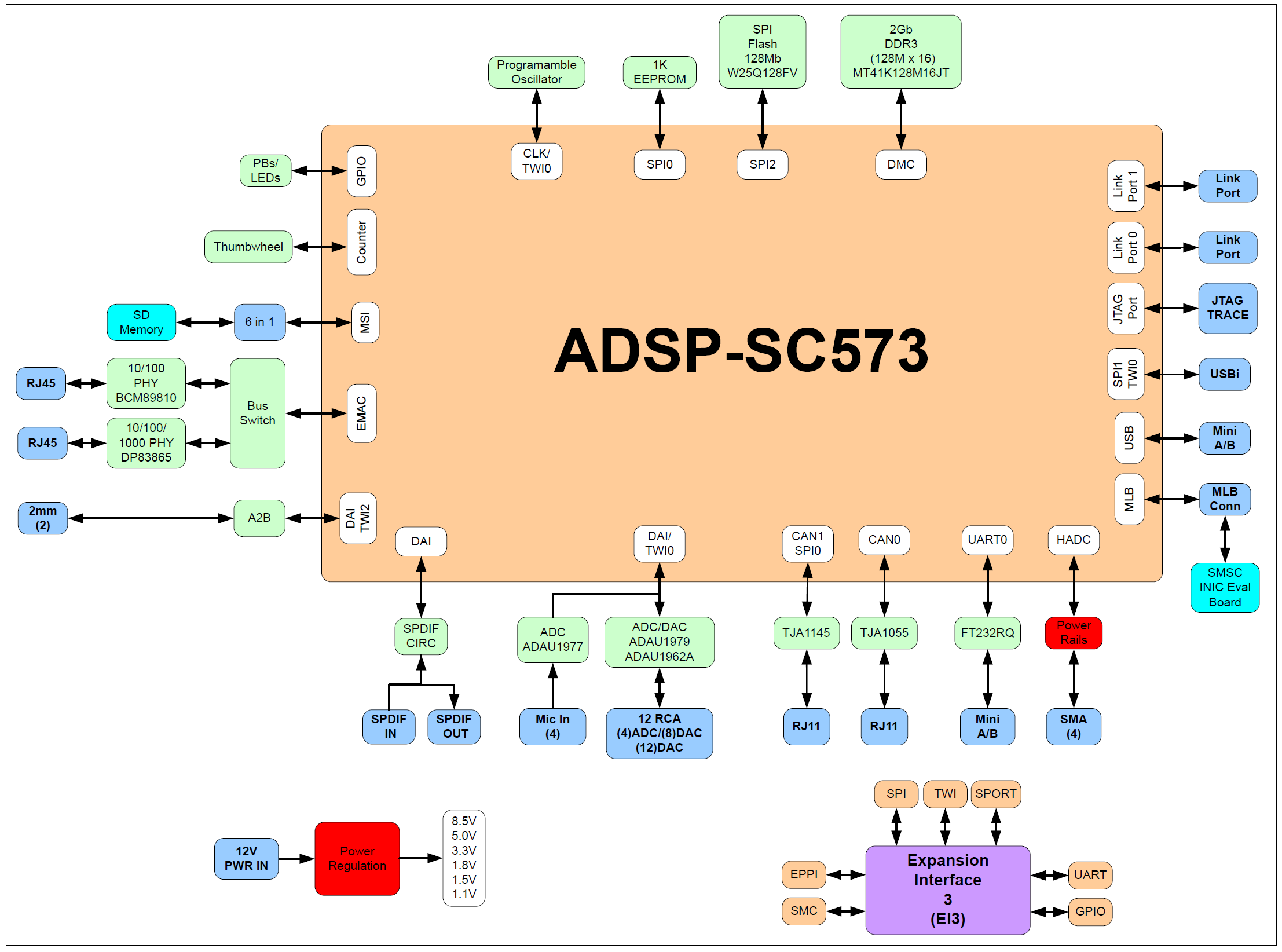

ADSP-SC57x Specs

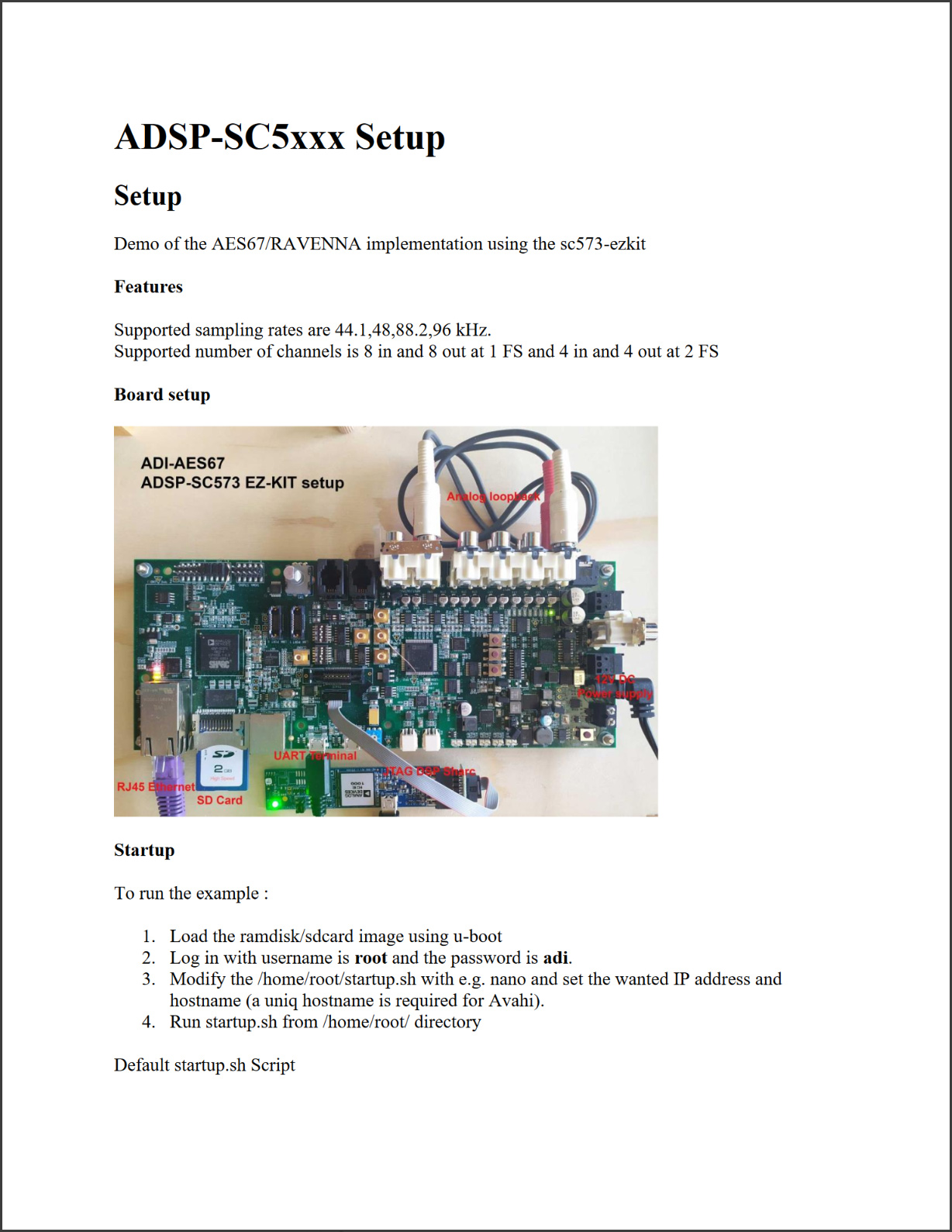

Demo kit setup

The detailed demo kit setup can be found on our Knowledge base here.

Demo Kit Setup


Success Stories

    Merging Technologies Announces AES67 Solution For Analog Devices Sharc® SoCs

    • May 9th 2022
    • Merging Technologies, Analog Devices, Merging, ADI, Sharc, AES67, ProAV, OEM, AoIP, ADSP-SC5xx, SoC, Arm Cortex® Core,

    Merging Technologies today announces the availability of its AES67 embedded solution for the ADSP-SC5xx SHARC® series of System on Chips (SoCs) from Analog Devices, Inc. (ADI). Merging Technologies’ experience in the audio over IP (AoIP) field (RAVENNA/AES67) and ADI's experience in unified communications and pro-audio applications, has led to a collaboration that broadens the range of AoIP solutions for manufacturers of electronics and ultimately integrators.

    Read More
